Introduction

Syslog events are messages generated by devices, applications, or systems, which are then captured and sent to a syslog server for storage, monitoring, and analysis. These events offer crucial insights into system operation and status, essential for troubleshooting and security assessments.

Prerequisites

The gateway server must be installed in the managed environment.

Monitor syslog events through OpsRamp tool

You should create rules and configuration profiles to monitor required syslog events through the OpsRamp tool. OpsRamp tool then generates alerts for the required syslog events as per rules and configuration profiles.

What is SysLog monitoring rule?

The syslog monitoring rule filters syslog events based on a RegEx pattern and generates alerts in the OpsRamp UI according to user-specified metric names, component names, alert subjects, alert descriptions, and alert severities.

You can define the metric, component, alert subject, and alert description in two ways:

• Static approach

  In static approach, you define fixed values for the metric name, component name, alert subject, and alert description based on syslog events.

  Example:

  • If you want to generate an alert when a syslog message contains the term invalid_user, you would create a rule specifying RegEx as invalid_user.

  • Whenever a syslog event matches RegEx, OpsRamp tool generates an alert using the predefined metric name, component name, alert description, and alert subject.

  The screenshot below illustrates this setup.

  Sample Syslog Event: “Jun 17 12:45:02 localhost sshd[1234]: Failed password for invalid_user from 192.168.1.200 port 5678 ssh2”




• Dynamic approach

  With this approach, you can dynamically derive the metric name, component name, description, and subject from syslog event using the grouping concept in RegEx. Additionally, it supports predefined macros that can be used when defining rules.

  Sample Syslog Event:"devname="abcserver" devid="F22004743" eventtime=1714470971124258725 tz="+0200" logid="0100040704" type="event" subtype="system" level="notice" vd="root" logdesc="System performance statistics" action="perf-stats" msg=Performance statistics: average CPU: 0, memory: 4, concurrent sessions: 20517, setup-rate: 1"

  Example: If you want to go with dynamic approach to generate an alert and derive the metric name, component name, description, and subject from the syslog message and want to see the logdesc value as the metric name, the devname value as the component, the msg=Performance statistics value as the subject, and the entire syslog event message as the description. When you receive the above syslog event, you have to define the RegEx as mentioned below:

  Regex pattern: "(devname=(.*)devid.*(logdesc=(.*)(action=(.*)(msg=(.*(Performance statistics).*)))))"

  Alert Details in OpsRamp: Below is a sample alert.
  The rules have to be defined as mentioned in the screenshot.

  Metric name: system performance statistics
  Component name: abcserver
  Subject: Performance statistics: average CPU: 0, memory: 4, concurrent sessions: 20517, setup-rate: 1
  Description: devname=“abcserver” devid=“F22004743” eventtime=1714470971124258725 tz="+0200" logid=“0100040704” type=“event” subtype=“system” level=“notice” vd=“root” logdesc=“System performance statistics” action=“perf-stats” msg=Performance statistics: average CPU: 0, memory: 4, concurrent sessions: 20517, setup-rate: 1

• Supporting Macros

  1. ${received.syslog.message}: It provides a description of the event or message. In a syslog event message, the description typically provides specific details about what occurred or what was detected by the system or application.
  2. ${timestamp}: It shows the timestamp of the event when it was received at the gateway in Unix Time.

Configure SysLog monitor

Follow these steps to configure syslog monitor:

1. To select your client, navigate to All Clients, and click the Client/Partner dropdown menu.
   Note: You may either type your client’s name in the search bar or select your client from the list.

2. Navigate to Setup > Account. The Account Details screen is displayed.

3. Click Integrations. The Installed Integrations screen is displayed with all the installed applications.
   Note: If you do not have any installed applications, you will be navigated to the Available Integrations page with all the available applications along with the newly created application.

4. Click +ADD on the Installed Integrations page.
   Note: Search for the integration either by entering the name of the integration in the search bar or by selecting the category of the integration from the All Categories dropdown list.

5. Click +ADD in the SysLog Monitor Configuration application tile.






Syslog now supports both alerting and log collection. To enable this expanded functionality, two options are provided in Syslog configuration.

• Syslog Alerting
• Syslog Collection

Syslog Alerting

Enable this option to process Syslog messages as alerts. Based on the configured filters, if the conditions are met, Syslog alerts are generated for the corresponding devices in the OpsRamp platform. If the conditions are not met, the messages are not processed as alerts.

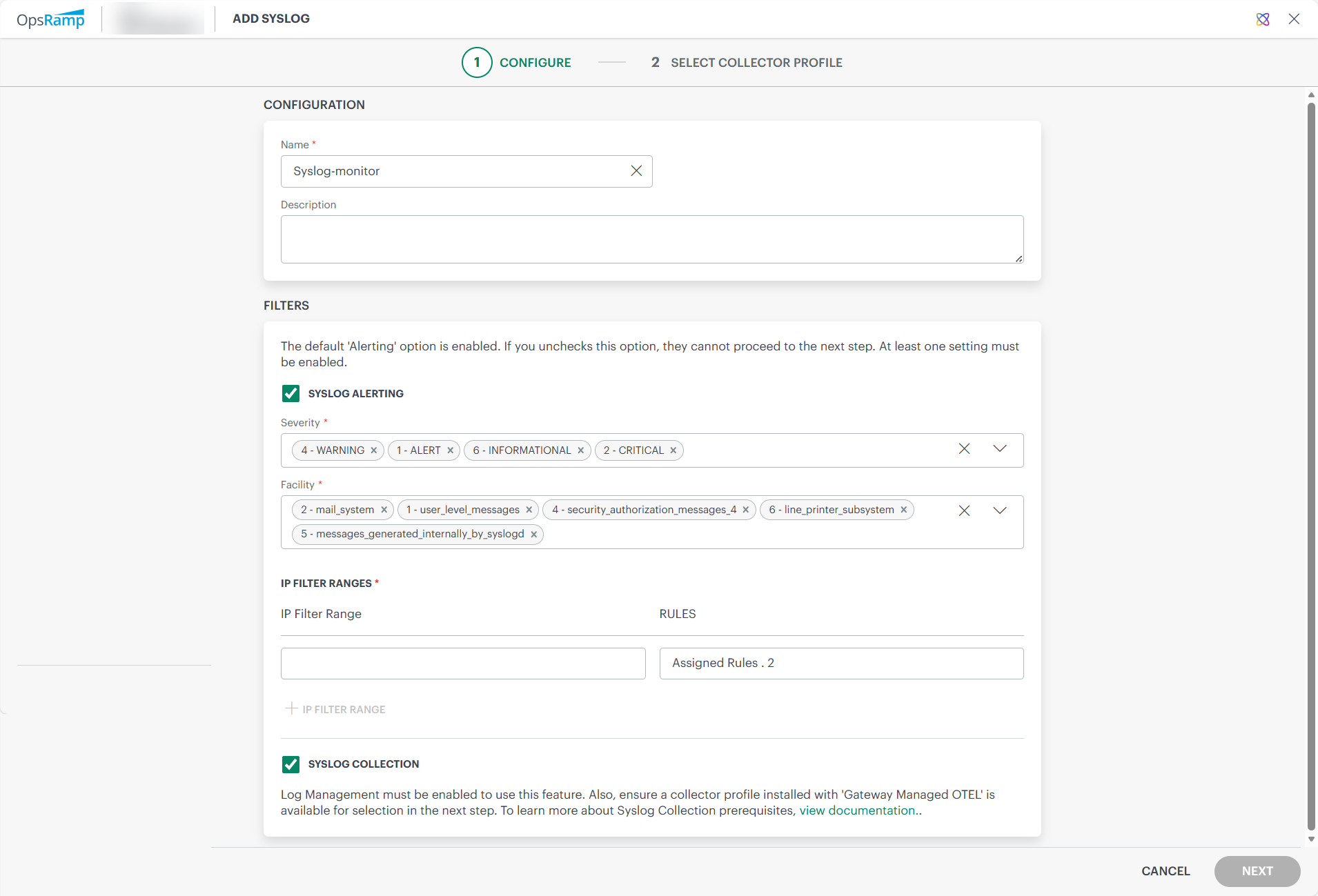

1. Enter the following information:

   CONFIGURATION

   Field Name	Field Type	Description
   Name	String	(required) Enter Configuration name.
   Description	String	Provide a description.

   FILTERS

   Field Name	Field Type	Description
   SEVERITY	Dropdown	(required) Select severity level from dropdown. See RFC 5424. Syslog messages having selected severity level will only be processed. Rest of the messages will be dropped.
   FACILITY	Dropdown	(required) Type of message to monitor dropdown from RFC 5424. Syslog messages having the selected facility codes will only be processed. Rest of the messages will be dropped.

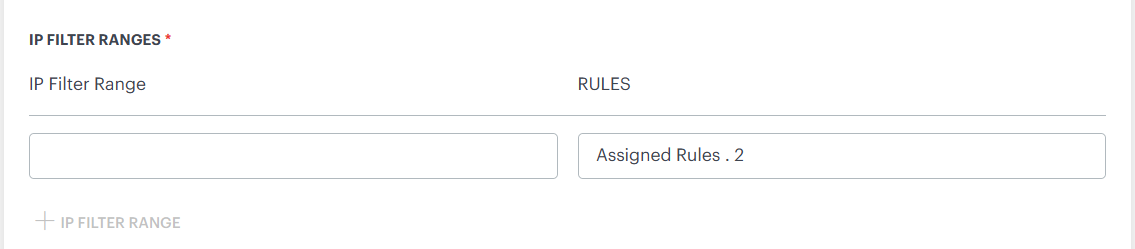

2. Click + or Add a IP range filter in the IP FILTER RANGE section. The ADD IP FILTER window is displayed.



IP FILTER RANGE

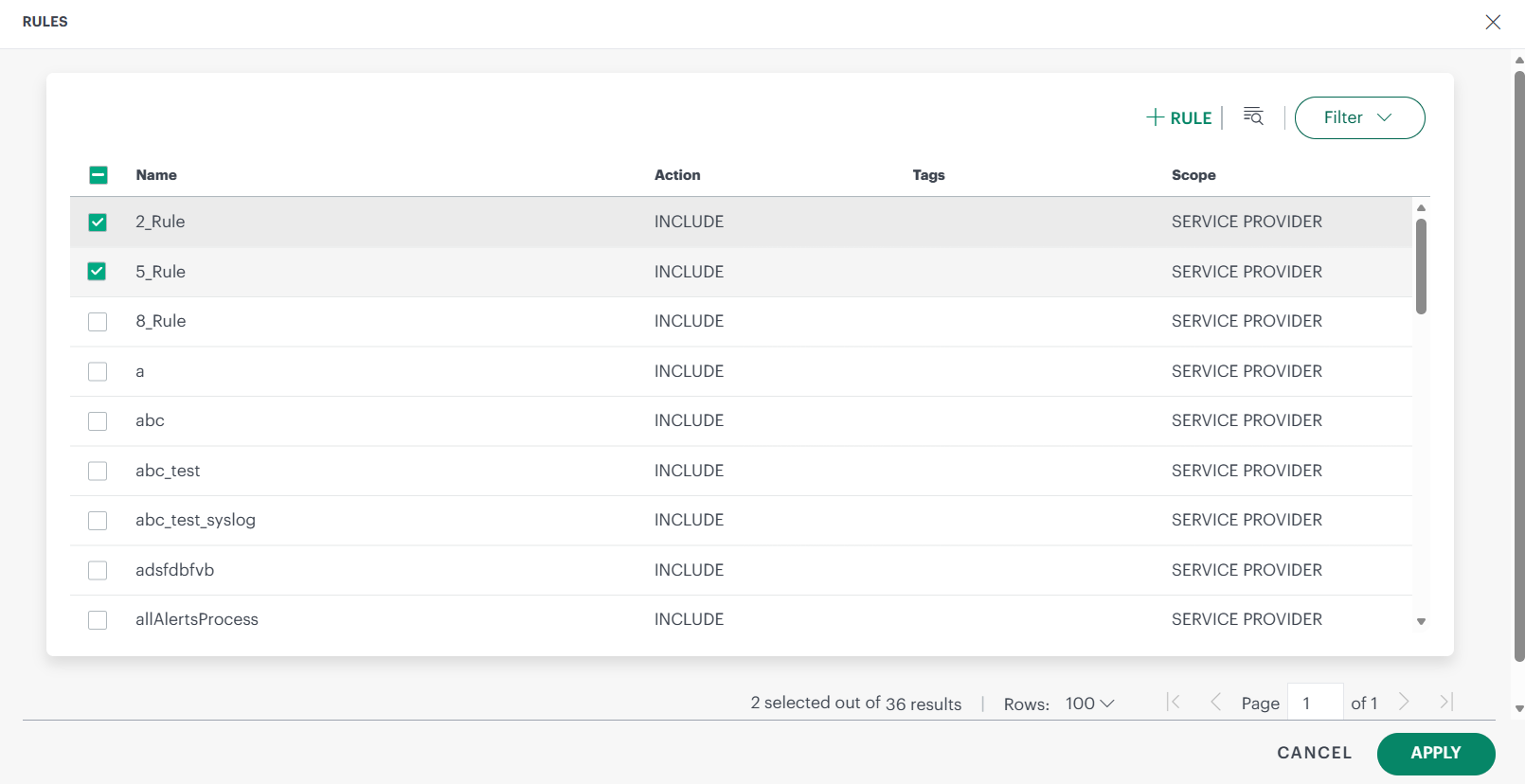

8. Click Assign Rules and select a rule from the list of rules.

9. The rule is added and listed in the RULES section.




10. Click +RULE to create a new rule. Enter the required details and click ADD SYSLOG RULE.


11. Enter the following information:


    Field Name	Field Type	Description
    Name	String	(required) Rule name.
    Action	Dropdown	(required) Action to apply to messages that match this rule: INCLUDE: If the event matches a rule, it is processed further. EXCLUDE: If the event matches a rule, it will not be processed further.
    RegEx Pattern	String	(required) RegEx pattern to apply for matching messages. Matching groups can be used as parameters, such as ${1}, in generating alert messages.
    Metric Name	String	(required) User-defined metric name, which can be specified using RegEx.
    Component	String	(required) User-defined component name.
    Alert Subject	String	(required) User-defined alert subject.
    Alert Description	String	User-defined Alert description.
    Alert Severity	Dropdown	(required) Alert severity level: Critical Warning Info Ok
    Tags	String	User-defined tag name.

12. Click ADD IP FILTER in the ADD IP FILTER window. The details are added.

    • To view or modify the IP Filter details:

      1. Hover over the row and click action (three dots) icon.
      2. Select View Details.
      3. Edit the required fields and click SAVE.



    • To remove the IP Filter details:

      1. Hover over the row and click action (three dots) icon.
      2. Select Remove. A confirmation popup is displayed.
      3. Click REMOVE. The IP Filter is removed.



13. Click NEXT. The FILTER screen is displayed.



14. Select a collector profile that is connected.
15. Click FINISH.

Syslog Collection

When the gateway receives a Syslog event, it first checks whether Syslog Collection is enabled in the Syslog configuration and verifies that all required log collection prerequisites are met.

Prerequisites

• Enable Log Management at the client level. This permission is required to ingest and forward logs to the cloud.
• Ensure your environment uses OpsRamp NextGen Gateway version 21.1.0 or later. Using the latest version is recommended for complete feature coverage and improvements.
• Enable Syslog Collection to forward Syslog messages.

Syslog Message Processing

Based on the detected format, the gateway identifies the Syslog message format. OpsRamp supports two formats:

• RFC 5424
• RFC 3164

For more information, see RFC 5424 - The Syslog Protocol and RFC 3164 - The BSD Syslog Protocol.

The gateway parses the event, converts it into the OTEL log format, and forwards it to the gateway-managed OpenTelemetry (OTEL) Collector for further processing.

If the Syslog message does not conform to a supported format, the gateway still converts it into OTEL format and forwards it. However, field extraction may be incomplete, and some attributes may not appear in the platform.

The OTEL Collector applies the filters defined in the YAML configuration:

• If a Syslog event matches a filter rule, the collector drops the event.
• If a Syslog event does not match any rule, the collector forwards it to the OpsRamp cloud.

The processed logs appear in Infrastructure → Logs.

Syslog Fields and Descriptions

The integration is installed and displayed on the Installed Integrations page. Use the search icon to search the installed integration.

Modify the Integration

• See Modify an Installed Integration or Application article.

  Note: Select SysLog Monitor Configuration.


How to process the received syslog event message

If any SysLog event is received by the gateway, it first checks the event Severity against the criteria specified in the first profile that is sorted alphabetically. If the severity matches, it proceeds to check the Facility. If the facility also matches, it proceeds to evaluate the Rules within that profile. If a rule is matched, the process stops; otherwise, it moves on to the next profile and repeats the same sequence of checks.

Examples:

• Let us consider three configuration profiles: P1, P2, and P3, and event E1 is received by the gateway. The gateway first checks the event against P1 profile. If event E1 matches the severity specified in profile P1, then the gateway checks the facility in profile P1. If it matches, then it proceeds to check the rules one by one in the P1 profile. If any of the rules in P1 do not match, the gateway moves on to profile P2 and checks the severity specified in the profile P2, it matches then checks the facility. If the facility matches the selected facility of the profile P2, it then checks the rules in the profile P2. If any of the rules match, the alert will be generated, and it will not check other profiles.
• If Event E2 is received by the gateway, it checks against profile P1. If the Severity of the event matches, then it checks the Facility in profile P2. If it matches, then it checks the rules in profile P1. If any of the rules do not match in profile P1 then it moves to profile P2. If it checks the severity of the profile P2 it matches, it checks the facility and it also matches, then checks the rules. If the rules do not match, then it moves to profile P3. If the severity of profile P3 does not match, the gateway will drop the event.
• If Event E3 is received by the gateway, it checks the Severity in profile P1. If it matches, then it proceeds to check the Facility in profile P1 and checks the rules in P1 one by one. If any rule matches in any profile, an alert is generated.
• If Event E4 is received by the gateway, it first verifies the Severity in profile P1. If it does not match, the gateway will drop the event.
• If Event E5 is received by the gateway, it initially verifies the Severity in profile P1. If it matches, then it proceeds to check the Facility in profile P1. If the facility does not match, the gateway will drop the event.

Additional Information

• SysLog events can be categorized into 8 types of events based on severity: Emergency, Alert, Critical, Error, Warning, Notice, Informational, and Debug. OpsRamp can generate Critical, Warning, OK, and Info alerts. These alerts are generated based on rules defined in the OpsRamp UI.

• If you want an OK alert, you must define a specific rule for it. If the OK alert needs to be appended to an existing critical/warning alert, the OpsRamp tool allows it, but it requires the Metric name, component name, and resource to remain the same; otherwise, it generates a separate alert.

• The Priority value is calculated by first multiplying the Facility number by 8, and then adding the numerical value of the Severity.

Related Topics

• To resolve frequently occurring issues in Syslog, refer Troubleshooting Steps section.
